With the advent of technology, the segmental construction of bridges became the need of the hour for almost every bridge and flyover construction across the globe. The launching gantries are deployed either on top or below the super-structure to carry forward the construction at ease of speed. There are various kinds of launching gantries available, the choice of which depends upon the geometry of site and construction sequence adopted by the designer. Structurally, it can be Built-up Box Girder, Truss or Combination of Both Box & Truss. Depending on the segment being fed, it can be taken down as follows:

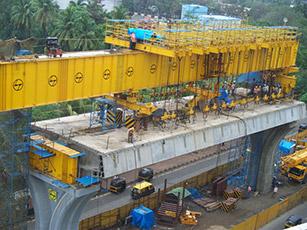

• Over Head Launching Gantry – Single Chord – Can be Box Or Truss
• Over Head Launching Gantry – Double Chord Combination of Box & Truss
• Under Slung Launching Gantry – Double Chord
• Station Launching Gantry for Pre-Case Elements – Multi Purpose
• Double Tier Launching Gantry Road Cum Metro Viaducts

Segmental construction for a varied span range from 21m to 60m can be easily done with Launching Girder depending upon the geometry, whether the segment can be fed from ground below or from the casting yard over erection span across any river. With the inception of hinge connection, even the erection of span and movement of launching gantry with sharper curvature (100M) is possible. The segment lifting hoist can be fixed mounted or it can have flexibility for movement as per the requirement of the project.

Considering the in-house expertise and experience in segmental construction, Bridgecon can offer gantries for both overhead and under slung erection. The design of our advanced equipment has been improved and optimized over the years, based on our wealth of experience from the various projects carried out, leading to the present systems, which is light weight, easy to assemble, practical, supported by internationally known hydraulic and carnage systems and most important, efficient in operation. With flexibility in design and connections, these gantries can be re-designed and re-used on other projects with.

Key Projects:

1. Active and Major role in supply and design of Launching gantries for Elevated Viaduct for Metro construction for Delhi Metro, Jaipur Metro, Nagpur Metro, Chennai Metro, Kolkata Metro, Ahmedabad metro, Hyderabad Metro etc.
2. Design and supply of launching gantry for elevated flyover for Hyderabad PV Narsimha Rao Flyover, Pune Bhosari Flyover, Badarpur Faridabad Expressway etc.
3. Design and supply of launching girder for long span Segmental bridges across river where the span ranges from 40m to 60m. Multiple Bridges across Mahanadi, B ridge across river Kathjodi, Bridge across River Rupnarayan, Bridge across River Yamuna etc.
